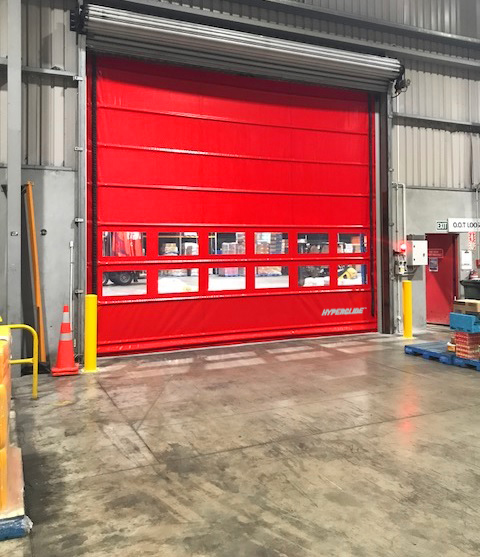

HYPERGLIDE

The HyperGlide High Speed Door is for ambient temperature interiors with speeds up to 2.0m/s and wind loadings of up to 120kph.

The HyperGlide High Speed Door is for ambient temperature interiors with speeds up to 2.0m/s and wind loadings of up to 120kph.

The HyperGlide is resistant to impacts by fork-hoists, with a robust door blade design and a crash-out capability with auto-relocation, which is set within a self-supporting door frame.

The soft-bottom edge offers safety to personnel as well as providing the necessary flex for the curtain crash-out relocation system.

One row of vision panels comes as standard, and rows can be added based on available space.

AUTO MOSSA doors are made in New Zealand.

HYPERGLIDE
SPECIFICATITONS
Standard Size up to (W x H)
5000 x 4000 mm
Opening/Closing Speed up to Max
2.5 / 0.6 m/s
Wind Resistance
Class 1 - 3 EN 12424
AirStrip
Standard
Variable Speed Drive
Standard
Control Voltage
24 V DC
Mains Connection
PNE 230V, 3L(N)/PE/415V, 50/60 Hz
2 x Sets of Inline Photocells
Standard
Flexible Soft Bottom Edge
Standard
Door Blade Knock-Out Capability
Standard
Top Roll Cover
Standard
Motor Cover
Standard
Curtain Colour Options
Six Standard Colours Available

Talk to our team

Have a question about our high speed doors or safety systems? Reach out and our specialists will reply within two to three business days.
