HYPERCHILL
Advanced Cold Storage High Speed Door with Superior Thermal Performance for Environments Down to -5°C.

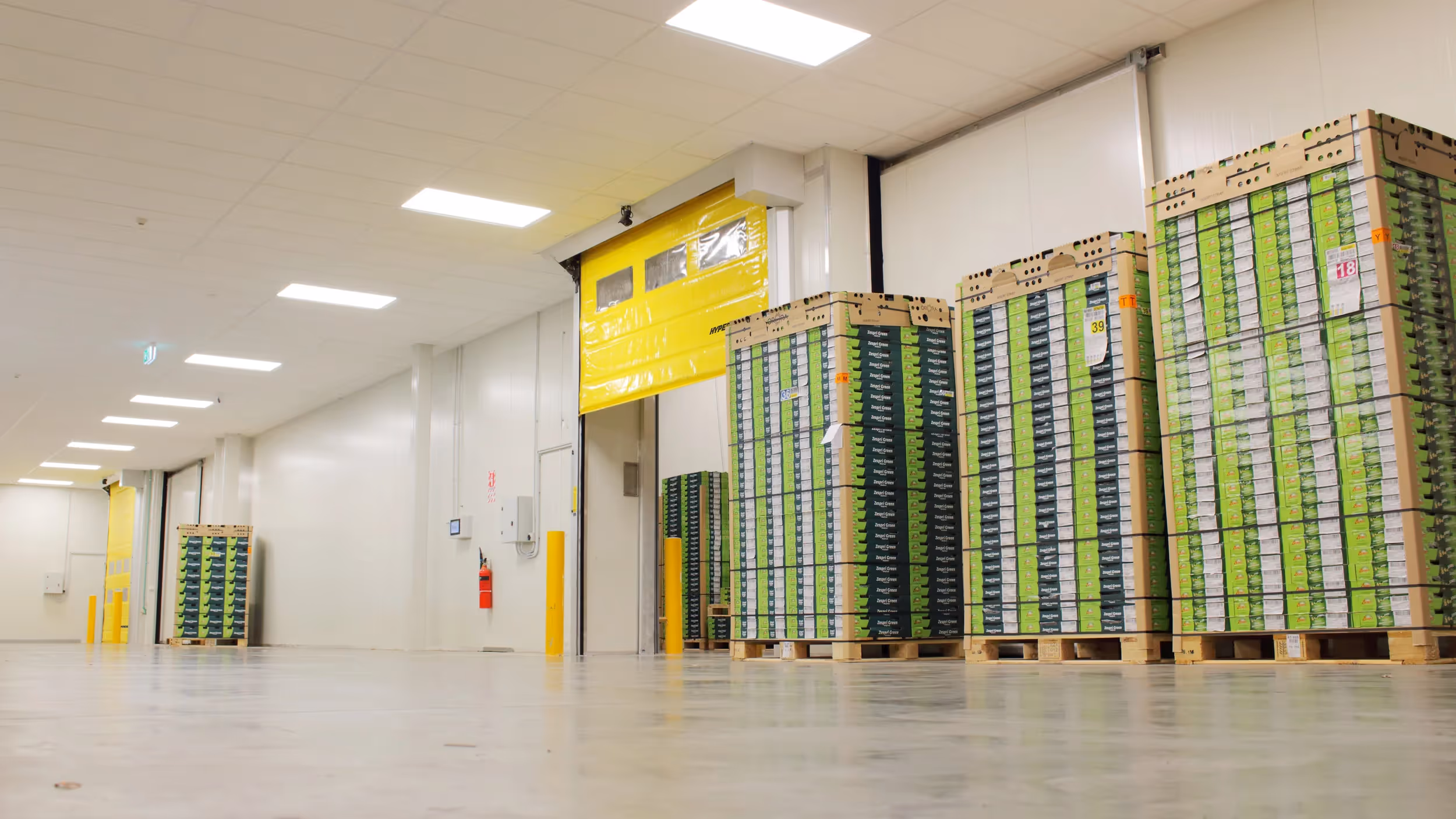

The HyperChill High Speed Door is for ‘Cold Storage’ applications with an advanced thermal performance of U Value 1.2 W/m 2C and an for operating environments down to -5 degrees C.
The HyperFreeze is resistant to impacts by fork-hoists, with a robust door blade design and a crash-out capability with auto-relocation, which is set within a self-supporting door frame.
The soft-bottom edge offers safety to personnel as well as providing the necessary flex for the curtain crash-out relocation system.
HYPERCHILL
SPECIFICATITONS
Standard Size up to (W x H)
4000 x 6000 mm
Opening/Closing Speed up to Max
2.5 / 0.6 m/s
Wind Resistance
Class 2 - 3 EN 12424
Insulated Door Blade (U value 1.7 W/m2C)
Standard
AirStrip
Standard
Variable Speed Drive
Standard
Control Voltage
24 V DC
Mains Connection
3L(N)/PE/415V, 50/60 Hz
2 x Sets of Inline Photocells
Standard
Flexible Soft Bottom Edge
Standard
Door Blade Knock-Out Capability
Standard
Top Roll Cover
Standard
Motor Cover
Standard
Six Standard Colours Available
Six Standard Colours Available
