HYPERGLIDE COMPACT

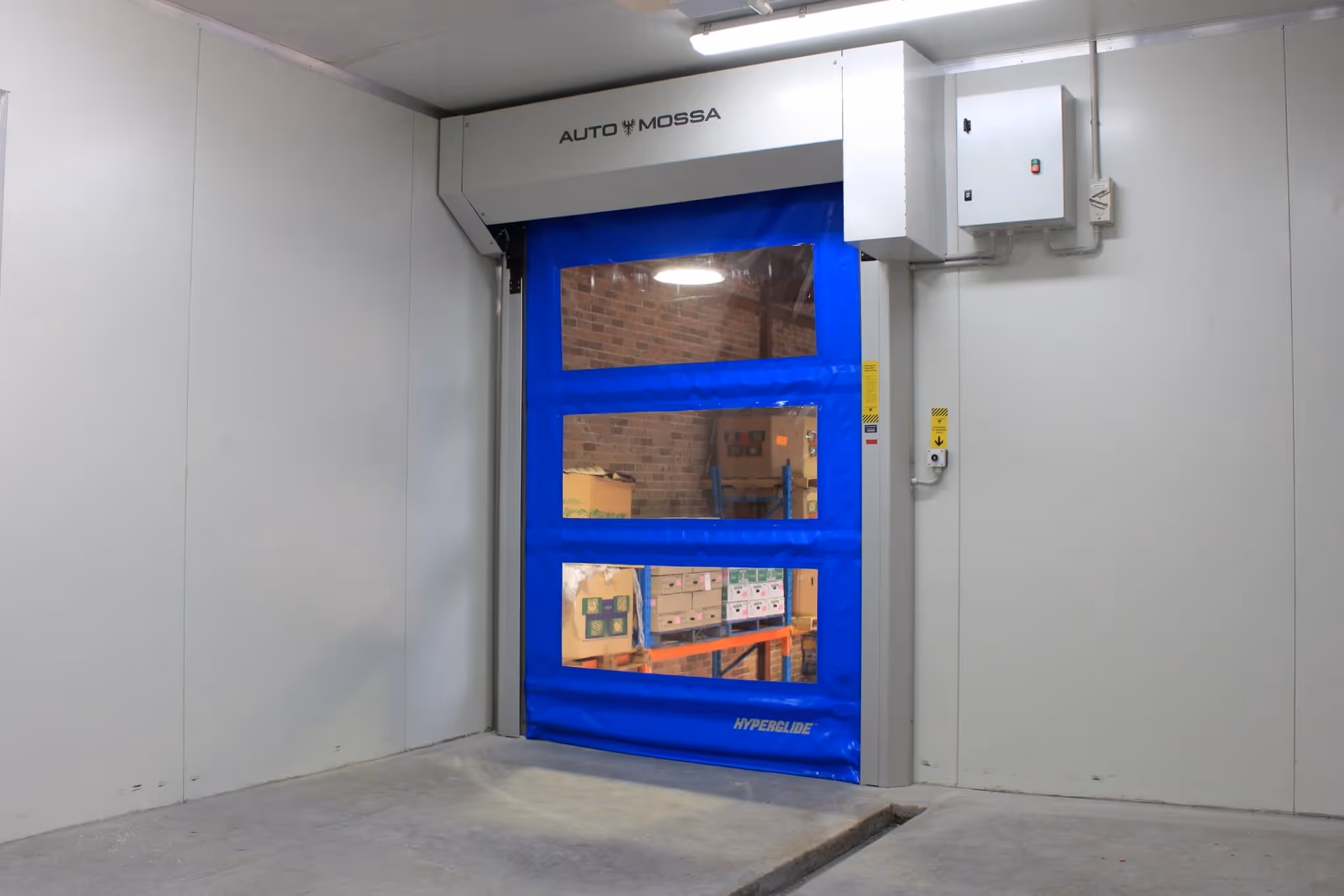

The HyperGlide Compact High Speed Door is for ambient and chilled temperature interiors with operating speeds up to 6 1/2 ft/sec.

The HyperGlide Compact High Speed Door is for ambient and chilled temperature interiors with operating speeds up to 6 1/2 ft/sec. The reduced head space required for this model supports interior spaces where space is limited.

‍

The HyperGlide Compact is resistant to impacts by fork-hoists, with a robust door blade design and a crash-out capability with auto-relocation, which is set within a self-supporting door frame.

‍

The soft-bottom edge offers safety to personnel as well as providing the necessary flex for the curtain crash-out relocation system.

‍

One row of vision panels comes as standard, and rows can be added based on available space.

‍

AUTO MOSSA doors are made in USA.

HYPERGLIDE COMPACT
SPECIFICATITONS
Standard Size up to (W x H)
13 x 12 ft
Opening/Closing Speed up to Max
6.5 / 2 ft/sec
Wind Resistance
Class 1 - 3 EN 12424
AirStrip
Standard
Variable Speed Drive
Standard
Control Voltage
24 V DC
Mains Connection
PNE 230V, 3L(N)/PE/415V, 50/60 Hz
2 x Sets of Inline Photocells
Standard
Flexible Soft Bottom Edge
Standard
Door Blade Knock-Out Capability
Standard
Top Roll Cover
Standard
Motor Cover
Standard
Curtain Colour Options
Six Standard Colours Available
